Khung Sườn Xe Tri Cervélo P-Series Disc -2020
Mô tả
THÔNG SỐ:
Phuộc / Fork: Cervélo All-Carbon, Tapered P Fork
Chén cổ / Headset: FSA IS2 1-1/8 x 1-3/8”
Ty bánh xe/Thru Axles:Cervelo Aero Thru-Axles,12x100/142
Cốt yên / Seatpost: Cervélo SP23 Carbon Tri Post
Phụ kiện / Accessories: Smartpak 400, Aerobottle 500, Rear Hydration Mount

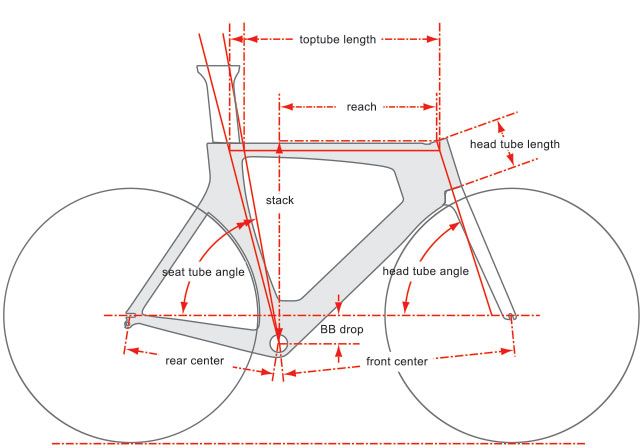

GEOMETRY & SIZING:
- SIZE: 48cm 51cm 54cm 56cm 58cm
- STACK: 485mm 506mm 522mm 540mm 559mm
- REACH: 381mm 398mm 412mm 425mm 437mm
- EFECTIVE TOP TUBE @75°: 511mm 533mm 551mm 570mm 587mm
- EFECTIVE TOP TUBE @79°: 475mm 496mm 513mm 530mm 546mm
- WHEEL SIZE: 700C 700C 700C 700C 700C
- HEAD TUBE ANGLE: 71° 72.5° 72.5° 72.5° 72.5°
- TRAIL* : 62.4mm 62.4mm 62.4mm 62.4mm 62.4mm
- FORK OFFSET: 52mm 43mm 43mm 43mm 43mm
- HEAD TUBE LENGTH: 87.5mm 101mm 118mm 137mm 157mm
- BOTTOM BRACKET DROP: 75mm 75mm 75mm 75mm 75mm
- FRONT CENTER: 575mm 577mm 579mm 586mm 604mm
- WHEELBASE: 975mm 976mm 995mm 1015mm 1033mm
- STANDOVER HEIGHT: 732mm 758mm 773mm 790mm 808mm
- CHAINSTAY LENGTH: 405mm 405mm 405mm 405mm 405mm
